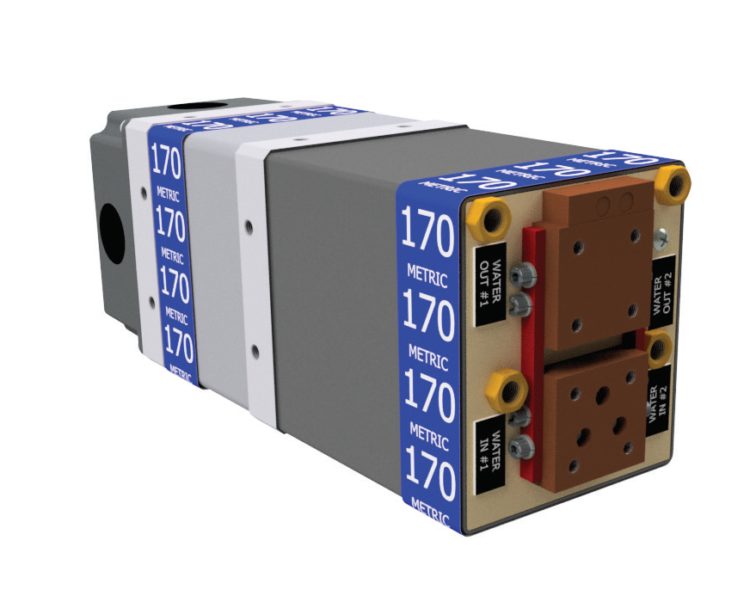

RoMan’s lightweight MFDC water-cooled transformers are ideal for robotic and fixture spot welding applications. With over-temperature thermoswitch protection, it is also available in 500 and 800 Volt,1,000 and 1800 Hz.

• 650 Volt, 1,000 Hz

• 170 KVA @ 50% duty cycle

• Secondary no load DC voltages of 9.5 and 13.0 volts

• Over-temperature thermoswitch protection

• Secondary pick-up coil

• Fully epoxy encapsulated to ensure long life

• Water-cooled, 15 L.P.M. (4 G.P.M.) minimum @ 30°C

  max inlet temperature

• Weight: 45 kg (100 lbs)

   • Also available in 500 & 800 Volt, 1,000 Hz
