TDC-5583 SIZE 2

Código: TR-TDC5583

RoMan’s next generation MFDC ultralight water-cooled inverter power supplies, are ideal for robotic welding applications. With over-temperature

thermoswitch protection and fully epoxy encapsulated to ensure long life, it is available in 500 and 800 Volt, 1,200 Hz.

• 650 Volt, 1,000 Hz

• 100 KVA @ 50% duty cycle

• Secondary no load DC voltage of 9.0 volts

• Over-temperature thermoswitch protection

• Secondary pick-up coil

• Fully epoxy encapsulated to ensure long life

• Water-cooled, 6 L.P.M. (1.59 G.P.M.) minimum @ 30°C max inlet temperature

• Weight: 15 kg (33 lbs.)

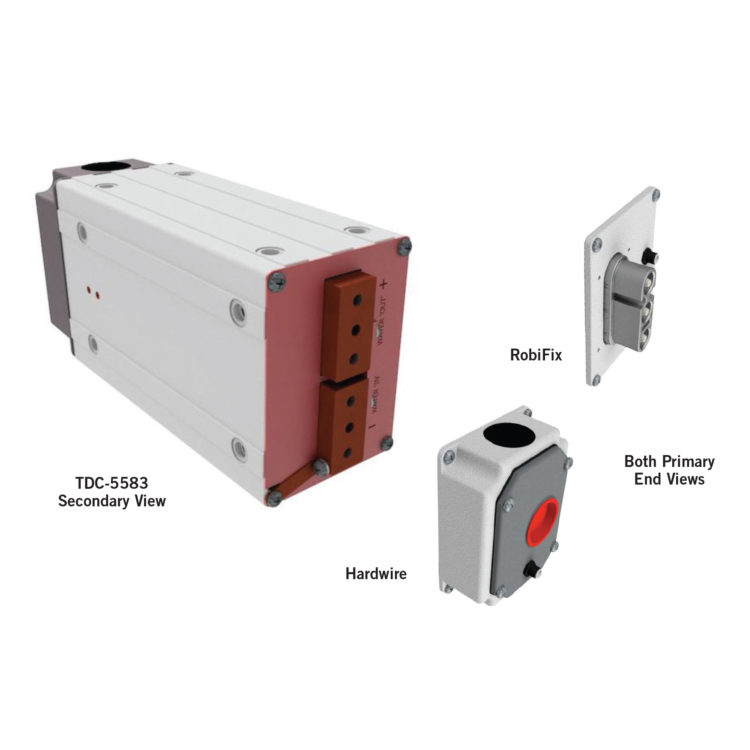

• Available in both Hardwire and RobiFix quick disconnect primary configurations

• Also available in 500 & 800 Volt, 1,000 Hz
