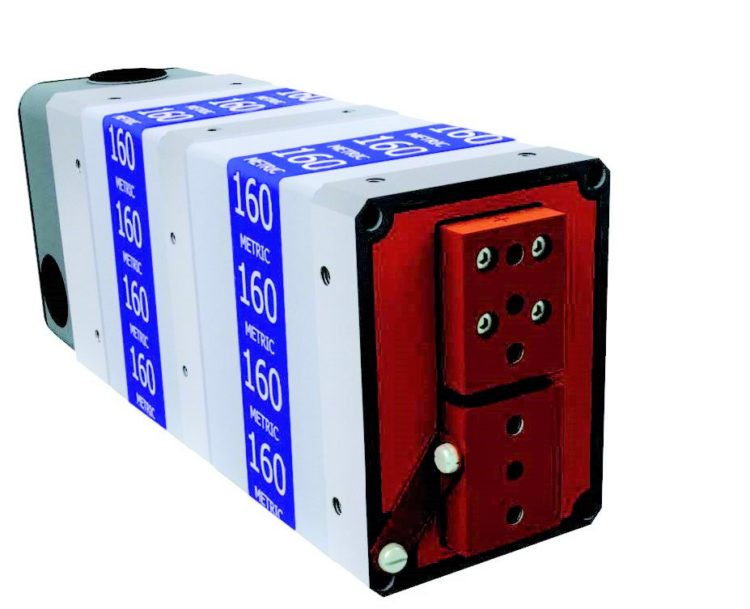

RoMan’s lightweight MFDC water-cooled transformers are ideal for robotic and fixture spot welding applications. With over-temperature thermoswitch protection and fully epoxy encapsulated  to ensure long life, it is also available in 500 and 800 Volt, 1,000 Hz.

• 650 Volt, 1,000 Hz

• 160 KVA @ 50% duty cycle

• Secondary no load DC voltages of 9.0 and 13.0 volts

• Over-temperature thermoswitch protection

• Secondary pick-up coil

• Fully epoxy encapsulated to ensure long life

• Water-cooled, 7.5 L.P.M. (2 G.P.M.) minimum @ 30°C max inlet temperature

• Weight: 32 kg (70 lbs.)

• Also available in 500 & 800 Volt, 1,000 Hz
