RoMan’s lightweight MFDC water-cooled transformers are ideal for robotic and fixture spot welding applications.  With over-temperature thermoswitch protection, it is also available in 500 and 800 Volt,1,000 and 1800 Hz.

• 650 Volt

• 170 KVA @ 50% duty cycle

• Secondary no load DC voltage of 13.0 volts

• Over-temperature thermoswitch protection

• Secondary pick-up coil

• Fully epoxy encapsulated to ensure long life

• Water-cooled, 7.5 L.P.M. (2 G.P.M.) minimum @ 30°C max inlet temperature

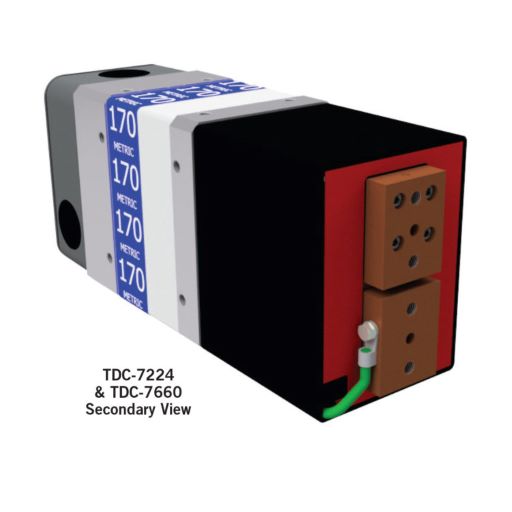

• TDC-7224, 1,000 Hz

    – Weight: 27 kg (60 lbs.)

• TDC-7660, 1,800 Hz

    – Weight: 24 kg (53 lbs.)

• Also available in 500 & 800 Volt, 1,000 & 1,800 Hz
